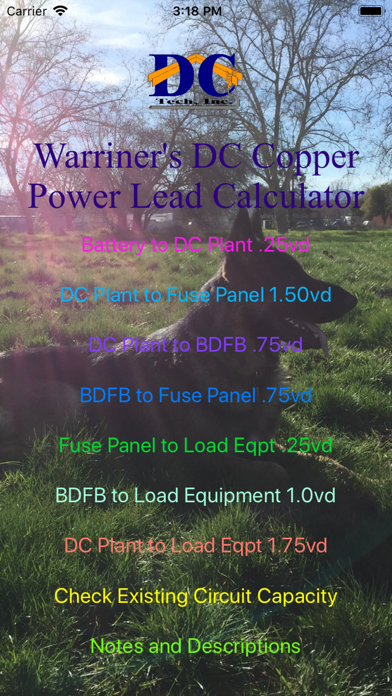

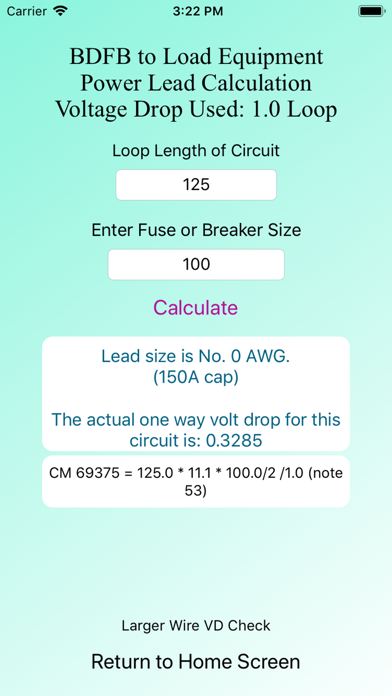

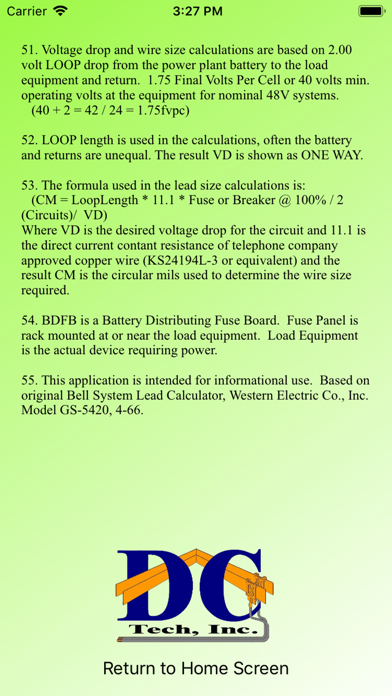

The formula used in the lead size calculations is: CM = LoopLength * 11.1 * Fuse or Breaker @ 100% / 2 (Circuits) / VD (for example T-Mobile might use 50% of the input breaker or fuse size to calculate DC power wires) CM = LoopLength * 11.1 * 2/3 Peak Amps or Busy Hour Amps / VD (for example the Bell System might use the cette application recommended 66% of the input breaker or fuse size to calculate DC power wires) (The Bell System terms Peak and Busy Hour are antiquated electro-mechanical switch central office terms so cette application recommends using 66% of the input fuse or breaker size, ie.  Where VD is the desired voltage drop for the circuit and 11.1 is the direct current contant resistance of telephone company approved copper wire (KS24194L-3 or equivalent) and the result CM is the circular mils used to determine the wire size required.  Voltage drop and wire size calculations are based on 2.00 volt LOOP drop from the power plant battery to the load equipment and return.  Application based on the Western Electric, Bell Laboratories, Bell System DC Power Lead Calculator which is in a circular slide rule format.  Using allowable voltage drops specifically designed for telephone company central office direct current power plants and distribution wiring.  The application references 48 volt battery systems but also works for other direct current voltages such as 24 volt.  Based on the original Bell System Lead Calculator, Western Electric Co., Inc.  600A fuse or breaker calculate using 400 amperes and which is exactly what we did at Western Electric Co., Inc.  When using for 24 volts or other, choose by the required loop voltage drop instead of the specific section of the circuit.  for Bell System Telephone offices/).  Load Equipment is the actual device requiring power.  Fuse Panel is rack mounted at or near the load equipment.  BDFB is a Battery Distributing Fuse Board.  LOOP length is used in the calculations, often the battery and returns are unequal length.  operating volts at the equipment for nominal 48V systems.  This application is intended for informational use.  1.75 Final Volts Per Cell or 40 volts min.  The result VD is shown as ONE WAY.  Model GS-5420, 4-66.  "cette application" is NOT affiliated with any person or company or anything else anywhere.  Especially NOT T-Mobile nor the Bell System or even Western Electric Co.  Inc., all of whom are mentioned.  This application is meant as a guide only in determining the size and or capacities of power wiring used in direct current (DC), charging and storage battery telephone systems.  This application is NOT intended to decide what type of wire, (or if you should even use wire or busbars in your DC systems), no how, no way and it is not for use with alternating current (AC) systems.
